Flagship supremacy version VIP Coaster

Model introduction

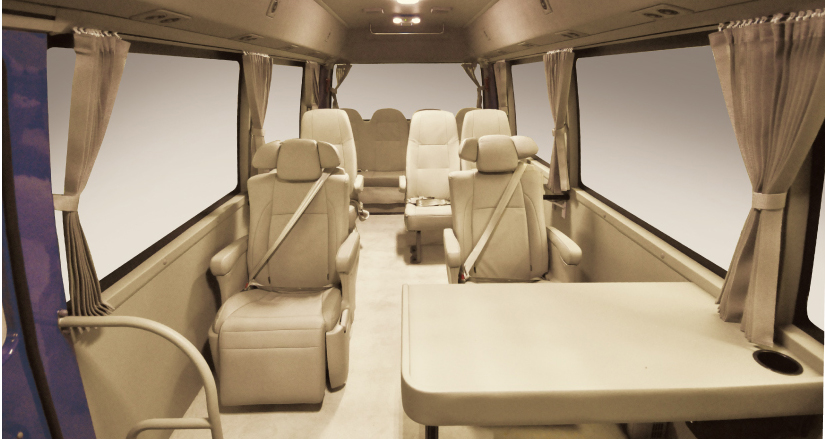

Classic Beige interior which matches with layout of official type and the high-end tailored configuration which is designed for the new business market can perfectly respond to the needs from commerce.

Model highlight

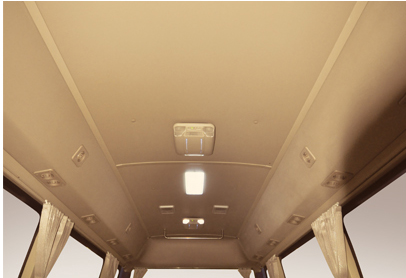

Warm and luxurious dome light can fully reflect the style of the luxurious aristocracy.
High end purification configuration is designed for significant business guests.

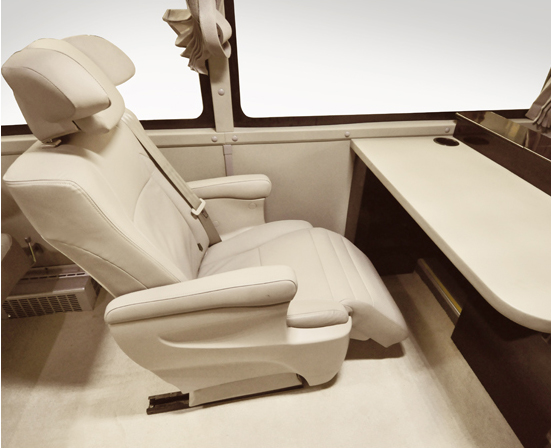

Business chief seat makes you experience the ultimate comfort of first-class cabin.
Equipped with folding leather seat, multifunctional built-in cup holder, sound vehicular audio and video system and imported professional ICAS vehicular refrigerator, coaster will increase relaxing and joyful atmosphere for your business trip.

Chief luxury version VIP Coaster

Model introduction

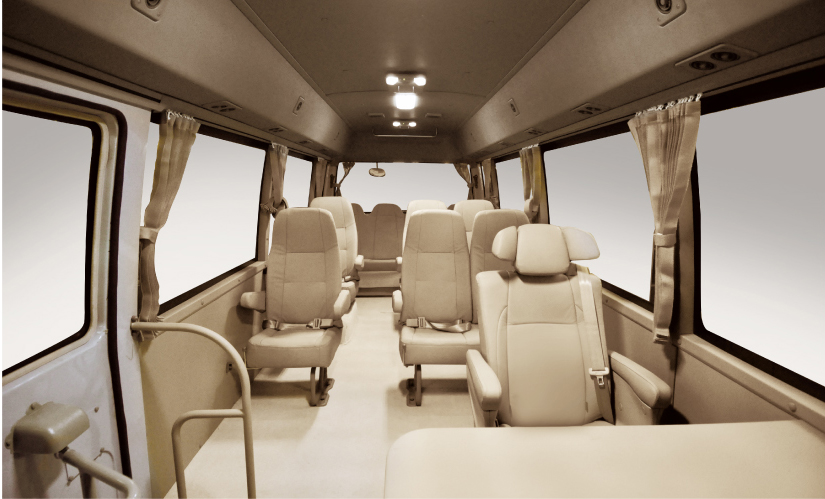

Ingenious layout will make Coaster feel so warm and comfortable. Superior interior technology and comfortable interior material can express the high end of Joylong Coaster.

Model highlight

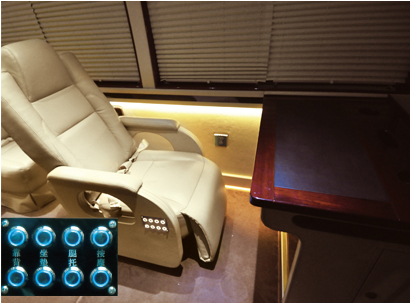

Full automatic massage luxurious administrative seats make you feel elegant and comfort.
Equipped with luxury vehicle refrigerator, it makes the detail more perfect.
Imported microcomputer electric heating water bottle makes every trip warm and comfortable.
The function of audio and video systems include GPS voice navigation, DVD player and color reversing display, and it make the trip more advanced.
High quality soft interiors match with elegant dome roof make the ride space have luxurious and comfortable feeling.
Full automatic massage luxurious administrative seats will make you feel elegant and comfort.

Administration luxury version VIP Coaster

Model introduction

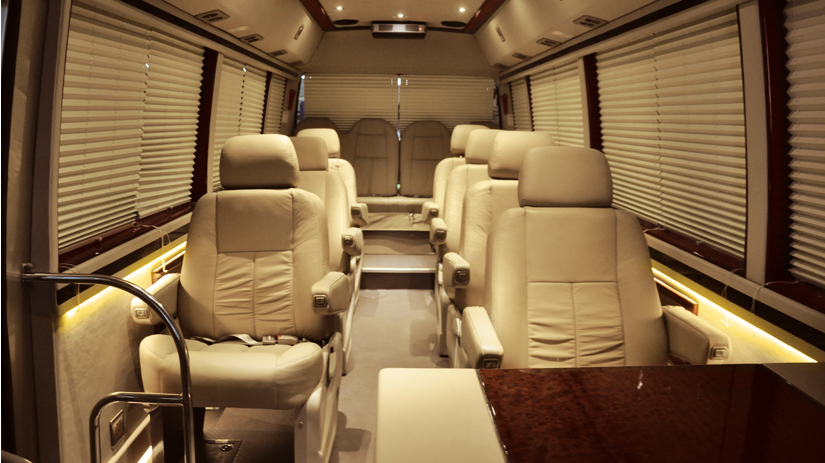

The seat levels which follow the Oriental etiquette are obvious and reasonable. The generous calm chief seats and rich business class configurations make Coaster become the first choice of official trips and receptions.

Model highlight

The configurations of the high-end administrative seats show the style of chief business class.
Equipped with professional vehicular air purifier, surround stereo speakers and top lightings, it creates a warm atmosphere for the whole vehicle.
The top configurations include noble graceful interior, multimedia integrated machine, deluxe leather seats and imported solid wood administrative table. It expresses the exalted status of passengers.

Elite business version VIP Coaster

Model introduction

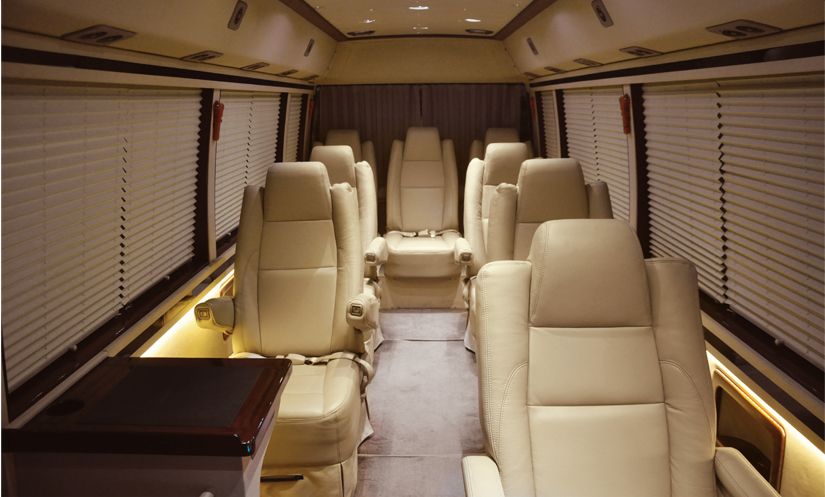

Elite business version VIP Coaster uses the supreme standard to build a top vehicle for the persons of supreme status. It gathers a number of deluxe configurations including comfort, entertainment and luxury. And it can be called first class in business car.

Model highlight

Business chief chair will make you feel supreme comfort like sitting in an aircraft first class.
The design of aircraft cabin interior will perfectly makes you experience open space layout.

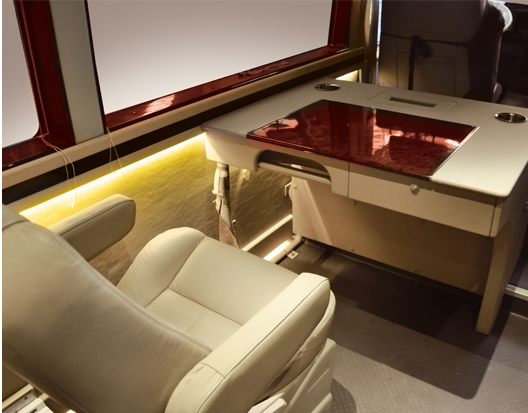

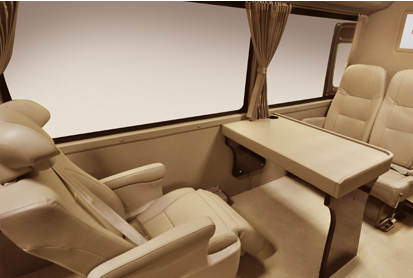

The imported teak business table expresses luxury atmosphere.
19 inch folding liquid crystal display will create entertainment atmosphere and make the mood cheerful.
Luxury vehicle refrigerator will give you a high quality travel experience.
Luxury type inner hidden cigar box is a symbol of noble life.

Exterior

Fully-enclosed tempered glass side window
Electric folding door
Electric external swinging door
Pull rod type backing mirror

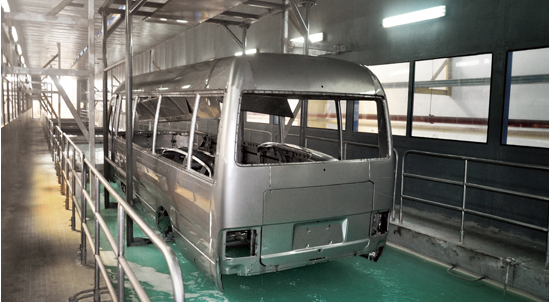

Cathodic electrophoresis system

Joylong coaster adopts cathodic electrophoresis system with the vehicle full immersion. It has superior resistance to smoke, heat and moisture resistance, and its climate adaptability is stronger, which can reach 10 years of safe preservation standards.

Six colors for optional

Plane layout

Model equipment

车型HKL6700AHKL6701CVHKL6701CVHKL6700AHKL6701CA
主要尺寸参数
长x宽x高长 (mm)70057005700570057005
宽 (mm)20402040204020402040
高 (mm)2645/27252645/27252645/27252645/27252645/2725
轴距 (mm)39353935393539353935
轮距前轮 (mm)16651665169016901690
后轮 (mm)15251525149014901490
最小离地间隙 (mm)170170175170175
前悬 (mm)11501150115011501150
后悬 (mm)19201920192019201920
接近角 (°)≥15≥15≥15≥15≥15
离去角 (°)≥10≥10≥10≥10≥10
额定乘员数公告光盘座位数：10-23；营运等级座位数：中级21+1
整车整备质量 (kg)42504350400040004000
最大总质量 (kg)62506300600060506000
底盘配置
变速箱远距离软轴操纵五档变速箱
轮胎7.00R16-12PR有内胎子午线轮胎
车桥整体式前、后桥独立式前桥、整体式后桥
悬挂系统前3后4少片簧、前横向稳定杆前独立扭杆弹簧悬架、后少片钢板弹簧悬架
油箱容量 (L)9090909090
主要性能参数
最小转弯半径 (m)≤17≤17≤17≤17≤17
动力性最高车速 (km/h)≥100≥100≥100≥100≥100
最大爬坡25%30%30%25%30%
经济性 (L/100km)1311111311
发动机
发动机型号绵阳3TZ沃尔福JE4D28A沃尔福JE4D28A绵阳3TZ康明斯ISF2.8S4148T
进气方式自然吸气增压中冷增压中冷自然吸气增压中冷
额定功率 (kw/rpm)120/4600-5000103/3200103/3200120/4600-5000110/3200 (150Ps)
最大扭矩 (N.m/rpm)260/2600-3600360/1600-2200360/1600-2200260/2600-3600360/1800-2700
燃油类型汽油柴油柴油汽油柴油
排放标准国Ⅳ国Ⅳ国Ⅳ国Ⅳ国Ⅳ
排量 (L)2.6932.7762.7762.6932.780
